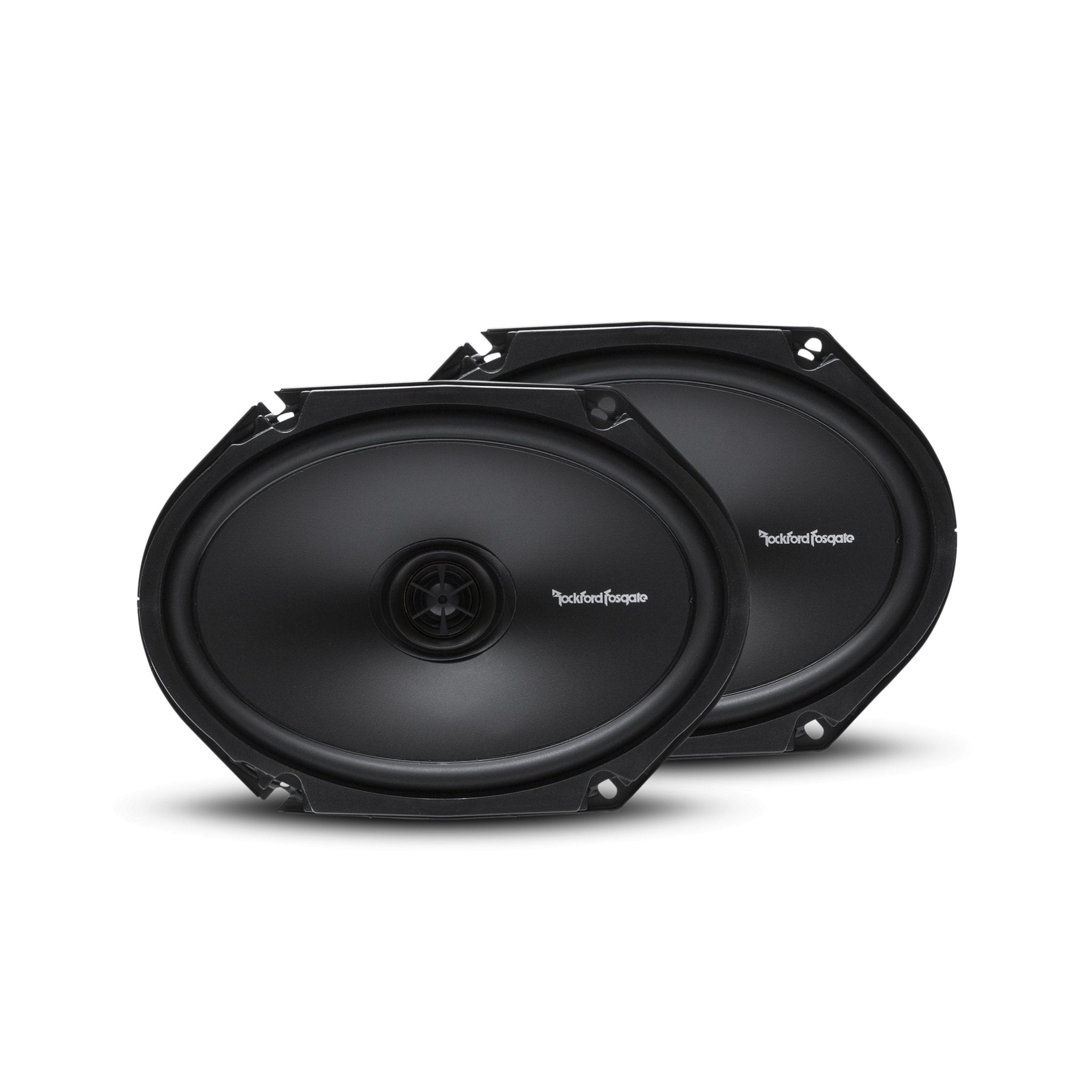

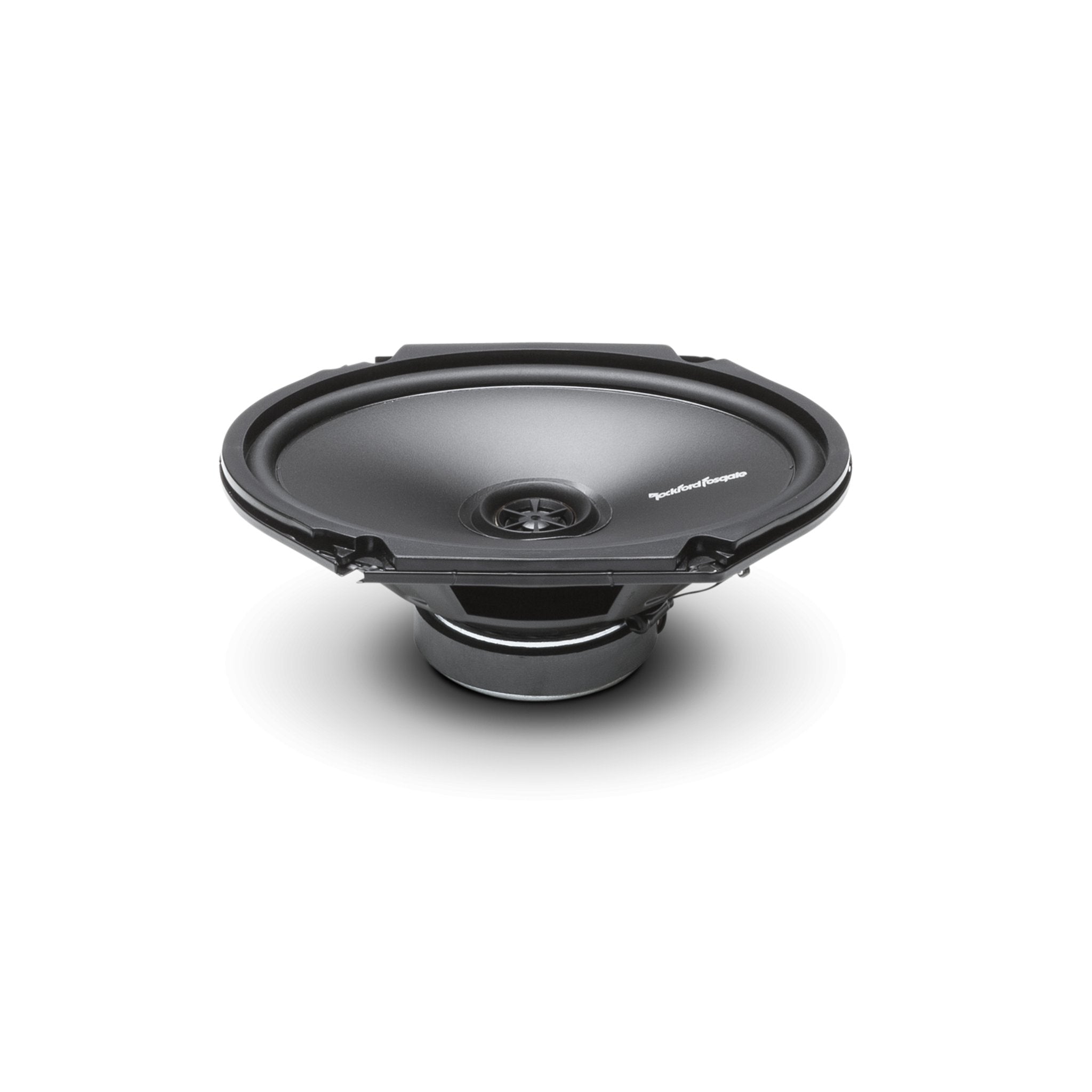

Prime 6"x8" 2-Way Full-Range Speaker
R168X2
The R168X2 is a 6”x8” 2-way full-range speaker rated at 55 watts RMS for a new generation of factory replacement speakers. Kit includes integrated high-pass crossovers and mounting hardware.
What's in the Box?
| ⬥ (1) Pair Prime Series Full Range Speakers |
| ⬥ Installation Accessories (16 ft., 26 gauge speaker wire, 8 speed clips and 4 mounting screws) |
Features
⬥ Vacuum Polypropylene cone
⬥ Rubber surround
⬥ Stamped steel basket
⬥ Silk dome flush mounted tweeter
⬥ Integrated tweeter crossover
General Specifications
| Midrange Mounting Depth |
2.54" (64.5mm) |
| Tweeter Mounting Depth |
|
Tweeter Size
(Nominal Diameter) |
0.50" (12.7 mm) |
| Speaker Type |
2-Way Coax |
| Crossover |
Tweeter High-Pass (HP): 6dB/octave |
| Mounting Hardware |
Yes |
| Grille/Trim Ring Included |
No |
| Power Handling (RMS) |
55 Watts RMS
110 Watts Max |
| Nominal Impedance (Ohms) |
4-Ohm |
Midrange Size
(Nominal Diameter) |
6"x8" |
| Frequency Response (Hz) |
51Hz - 20kHz |
Sensitivity
(dB @ 1W/1M) |
87 |
| CEA-2031 Compliant |
|
| Shipping Weight |
4.6 Lbs. (2.08 kg.) |
